Q-BRID

1080P HD-SDI + 960H + IP All Hybrid DVR.



pro_double

IP HYBRID


• 1080P Full HD Realtime Live & Recording.
• Auto detection HD-SDI & 960H.
• IP Hybrid in DVR.(IPC 4 units connected in DVR)
• Supported HD SPOT.
• Individual channel setting.
• Friendly user OSD GUI.
• Powerful CMS with Remote setup.
• EYEON Mobile APP (For iPhone, Android)
• Storage – 2 SATA(Compact), 4 SATA + 1 eSATA(Rack)


Down_Bro Down_CMS Down_Manual
Specifications
Model Q04 Q08 Q16R Q16R+
Video Camera input 4 BNC 8 BNC 16 BNC 16 BNC
Individual HD/Analog selectable All Hybrid(Auto Detection)
Available source IP camera/HD-SDI 720p25,30,50,60/HD-SDI 1080p25,30,50,60/1080i50,60/Composite/960H/Mixed/Another DVR
IP Camera Spec ONVIF 2.3, RTSP, H.264, dual stream
use gigabit ethnet hub
Num 4 units
Output 1 HDMI (Main Display or Programmable HD Spot)
1 VGA (Main Display or Programmable HD Spot)
1 Composite (Programmable SPOT)
*HD spot extention(option) VGA HD spot extender with FTP CAT5 cable upto 100m
Audio Audio input 4 RCA 16 RCA
Output 1 RCA
Sensor In 4 (NC, NO selectable) 16(NC, NO selectable)
Alarm out 1 relay 14 TTL, 2 relay
Operating System Embedded Linux OS
Display Speed Real Time
Resolution (Pixel) 1280X1024, 1280X720, 1920X1080
Split screen 1,4  1,4,6,8,9 1,4,6,8,9,13,16
Main
Recording		 CODEC H.264
Resolution (Pixel) 720p, 1080p, 960H, 720H, WCIF, CIF Mixed
Picture quality 4 steps (Super, High, Medium, Low)
Speed NTSC area
PAL area		 120fps@1080p
100fps@1080p		 240fps@1080p
200fps@1080p		 480fps@1080p
400fps@1080p		 480fps@1080p
400fps@1080p
Playback Display 1,4  1,4,8 1,4,6,8,9,13,16
Search mode Calendar, Event ,POS , Panorama, Thumbnail
Speed NTSC area
PAL area		 60fps@1080p
100fps@1080p		 120fps@1080p
200fps@1080p		 120fps@1080p
200fps@1080p		 480fps@1080p
400fps@1080p
Fast/Slow speed Normal, REW & FF [recorded speed x2, x4, x8, x16,x32,x64,x1/2,x1/4], Frame to frame, Pause
Network Network Interface Gigabit Ethernet X 1 Gigabit Ethernet X 2
Speed 15fps@1080p 90fps@1080p
70fps@1080p		 180fps@1080p
140fps@1080p
Protocol TCP/IP, HTTP, DHCP
Application Windows 7 / 8 (PC Client system& IE)/MAC
Web Browser Internet Explorer, Safari, Chrome, Firefox
Smart phone App  Android, iPhone for live and search
Backup Interface USB 2.0 X 2 USB 2.0 X 3
Backup device External HDD, CD&DVD-RW, Network, Thumb Drive
The number of HDD 2 SATA(No capacity limit ; 4TB of more) 4 SATA + 1 eSATA(upto 12 bays, No capacity limit ; 4TB or more)

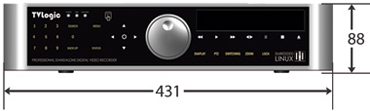

Dimensions (Unit:mm)
dimension_rack

Size : 431 x 88 x 409 (429 with Button)

 dimension_com

Size : 340 x 60.8 x 261
