AHD(2.0) ECONOMY

1080P AHD(2.0) + 960H Hybrid DVR



pro_compact2 auto_detection

AHD HYBRID


• 1080P Full HD Realtime Live
• 1080P Half Realtime Recording
• Auto detection AHD & 960H
• Long distance up to 300m (AHD)
• Individual channel setting
• User friendly OSD GUI
• Powerful CMS with Remote setup
• EYEON Mobile APP (For iPhone, Android)
• Storage – 1 SATA (Mini : 04/08ch), 2 SATA
(Mini Wide: 16ch)


Down_Bro Down_CMS Down_Manual
Specifications
Model AHD(2.0) NP04 AHD(2.0) NP08 AHD(2.0) NP16
Video Camera input 4 BNC 8 BNC 16 BNC
Individual HD/Analog selectable AHD (2.0 / 1080P) + 960H Hybrid
Available source TVI 720p25,30/1080p25,30 / AHD 720p25,30/1080p25,30 / Composite/960H/Mixed
Output 1 HDMI (Main Display), 1 VGA (Main Display)
Audio Audio input 4 RCA 8 RCA 16 ( 8 RCA + 8 DB15)
Output 1 RCA
Sensor In 4 (NC, NO selectable)
Alarm out 1 relay
Operating System Embedded Linux OS
Display Speed Real Time
Resolution (Pixel) 1280X1024, 1280X720, 1920X1080
Split screen 1,4  1,4,6,8,9 1,4,6,8,9,13,16
Main
Recording		 CODEC H.264
Resolution (Pixel) 1080p (1080p25,30) / 720p (720p25,30) / 960H, D1 (Composite, 960H)
Picture quality 4 steps (Super, High, Medium, Low)
Speed NTSC area
PAL area		 120fps@720p/60fps@1080p
100fps@720p/50fps@1080p		 240fps@720p/120fps@1080p
200fps@720p/100fps@1080p		 480fps@720p/240fps@1080p
400fps@720p/200fps@1080p
Playback Display 1,4  1,4,6,8,9 1,4,6,8,9,13,16
Search mode Calendar, Event ,POS , Panorama, Thumbnail
Speed NTSC area
PAL area		 30fps@1080p
25fps@1080p		 30fps@1080p
25fps@1080p		 60fps@1080p
50fps@1080p
Fast/Slow speed Normal, REW & FF [recorded speed x2, x4, x8, x16,x32,x64,x1/2,x1/4], Frame to frame, Pause
Network Network Interface Megabit Ethernet Gigabit Ethernet
Low Resolution (Pixel) Used Recording Streaming.
Speed NTSC area
PAL area		 480x256 (1080p25,30) / 480x256 (720p25,30) / CIF (Composite, 960H)
Protocol 50fps (480x256) 240fps (480x256) 240fps (480x256)
Application TCP/IP, HTTP, DHCP
Web Browser Windows 7 / 8 (PC Client system& IE)/MAC
Smart phone App Internet Explorer, Safari, Chrome, Firefox
Backup Interface Android, iPhone for live and search
Backup device USB 2.0 X 2
The number of HDD 1 SATA(No capacity limit ; 6TB of more) 2 SATA(No capacity limit : 6TB of more)

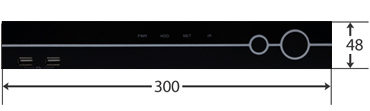

Dimensions (Unit:mm)

Size : 300 x 48 x 210
